Product Description

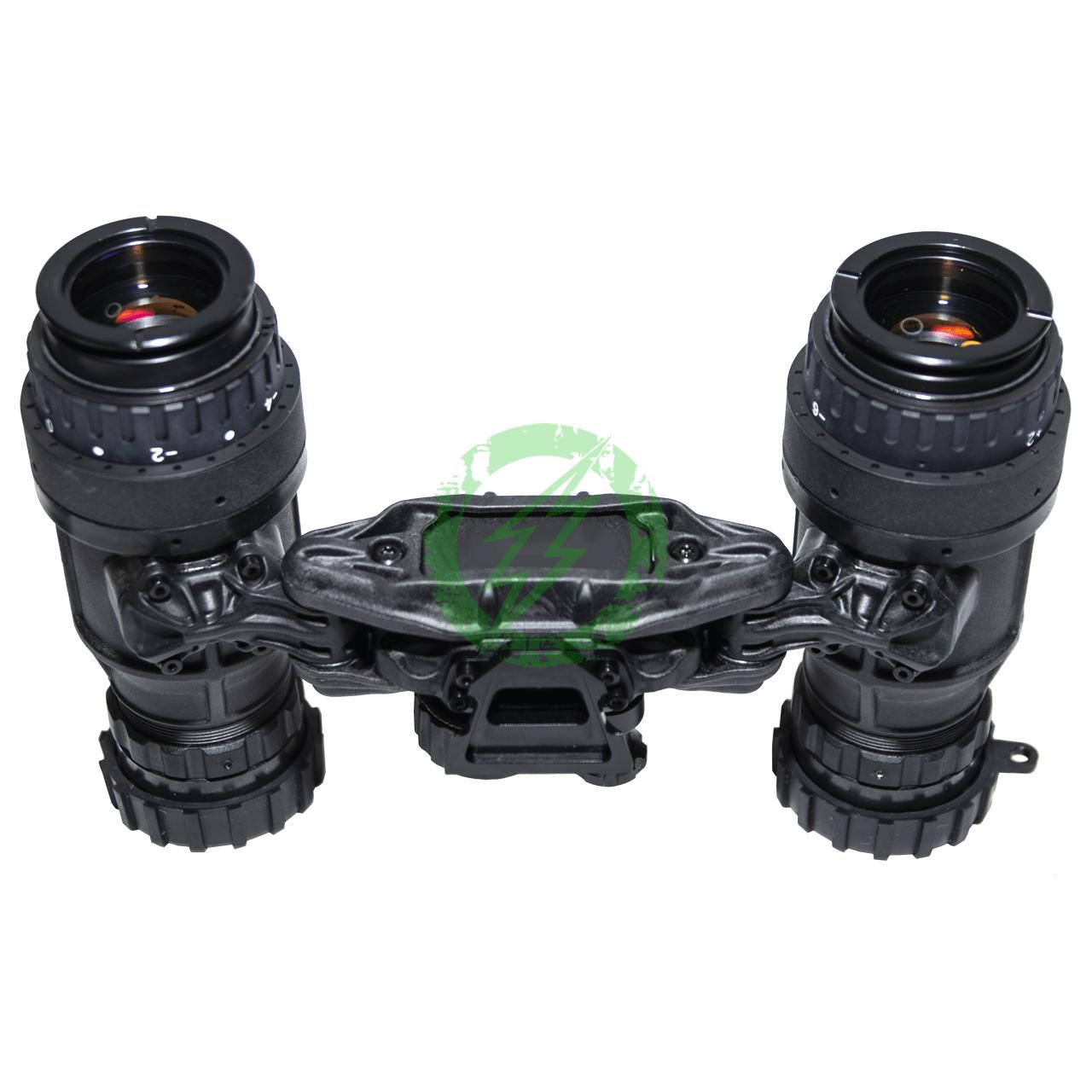

White Phosphor ACT DTNVS-14 Binocular Night Vision Device
The DTNVS is a lightweight dual tube night vision goggle made for the professional users and sportsman. Like all dual tube night vision systems, the DTNVS provides depth perception and increases situational awareness over a monocular. Weighing in under 18oz the DTNVS offers significant weight savings over competing night vision binoculars and dual bridged monoculars. Although they are light, the DTNVS are more that rugged enough for ground use or close quarter engagements.
The DTNVS auto-off function independently powers down one or both sides of the binocular when rolled outboard, and automatically powers back up each pod when rolled inboard. The DTNVS is ergonomic and extremely low profile when stowed against a helmet and the use of standard PVS-14 optics makes the DTNVS compatible with many PVS-14 style optics upgrades like the Ether lightweight eyepiece.
The DTNVS is powered by a single CR123A which is loaded from the objective side of the middle bridge. These tubes can also be used with battery packs.
If you are looking for a high end housing for your solid state technology white phosphor night vision, this is one of the best ways to go! Many Airsofters and Hunters find that the Photonis Echo tubes are more than adequate for use. Control all aspects of the night!
DTNVS Housing Specifications:
- Finish: Matte Black, Corrosion Resistant Fiber Re-enforced Polycarbonate Body
- Independent Auto On/Off
- Flip-Up On-Off
- Side Flip-Up On-Off
- Built-in IR LED with "IR-on" Indicator in FOV
- Low Battery Indicator in FOV
- Waterproof: 20m (66ft) for 2 hours
- Corrosion Resistance Against Salt Water
- Magnification: 1x
- Lens System: F/1.2
- Field of View (FOV) 40°
- Range of Focus: 0.25 m to ∞
- Diopter Adjustment: +2 to -6 dpt
- Infrared Illuminator: Yes
- Power Supply: 1x CR123A
- Battery Life: Approx. 25 Hours at Room Temperature (CR123A)
- Dimensions: 76 x 105 x 111 mm
- Weight: 441-510g depending on optics and tubes
- Standards: Exceeding MIL-STD-810G
- Housing is made in Luxembourg
- Carson PVS-14 Style Manufactured Glass
ECHO Tube Specifications:
- FOM 1800+ Minimum
- SNR 26.5+
- Resolution: 64-72 lp/mm
- High Light Resolution (299 lux): 55 lp/mm
- Operational Time: 10,000 Hours
- Halo: .7-1.0
- EBI: <0.25
- ECHO Image Intensifier Tubes may have a maximum of 2 spots in Zone 1, 2, or 3.
Elbit Tube Specifications:
- FOM 1800+ Minimum
- SNR 25-45
- Resolution: 64-82 lp/mm
- Operational Time: 10,000 Hours
- Halo: .7-1.0
- EBI: <2.5 Maximum
- Image Intensifier Tubes may have a maximum of 2 spots in Zone 1, 2, or 3.
- YH Version of Elbit Tube is the highest performance Milspec Tube Available for Elbit and is typically much higher than the minimum numbers above.
L3 18UM Un-Filmed Tube Specifications:
- FOM 1800+ Minimum
- SNR 24:1 Minimum
- Resolution: 64-72 lp/mm Typical
- Operational Time: 10,000 Hours
- Halo: 1.0 Maximum
- EBI: <2.5 Maximum
- Image Intensifier Tubes may have a maximum of 3 spots in Zone 2, or 3. (Dark spots </= .003” are acceptable)
- L3 Filmless tubes perform much better in low light environments vs their thin filmed equivalents. Typically performance is higher than the minimum numbers above.
Warranty:
- Two Year Limited Warranty on Housing against Manufacture Defects
- Ten Year Limited Warranty on Image Intensifier against Manufacture Defects
- These warranties do not apply to normal wear and tear or abuse.

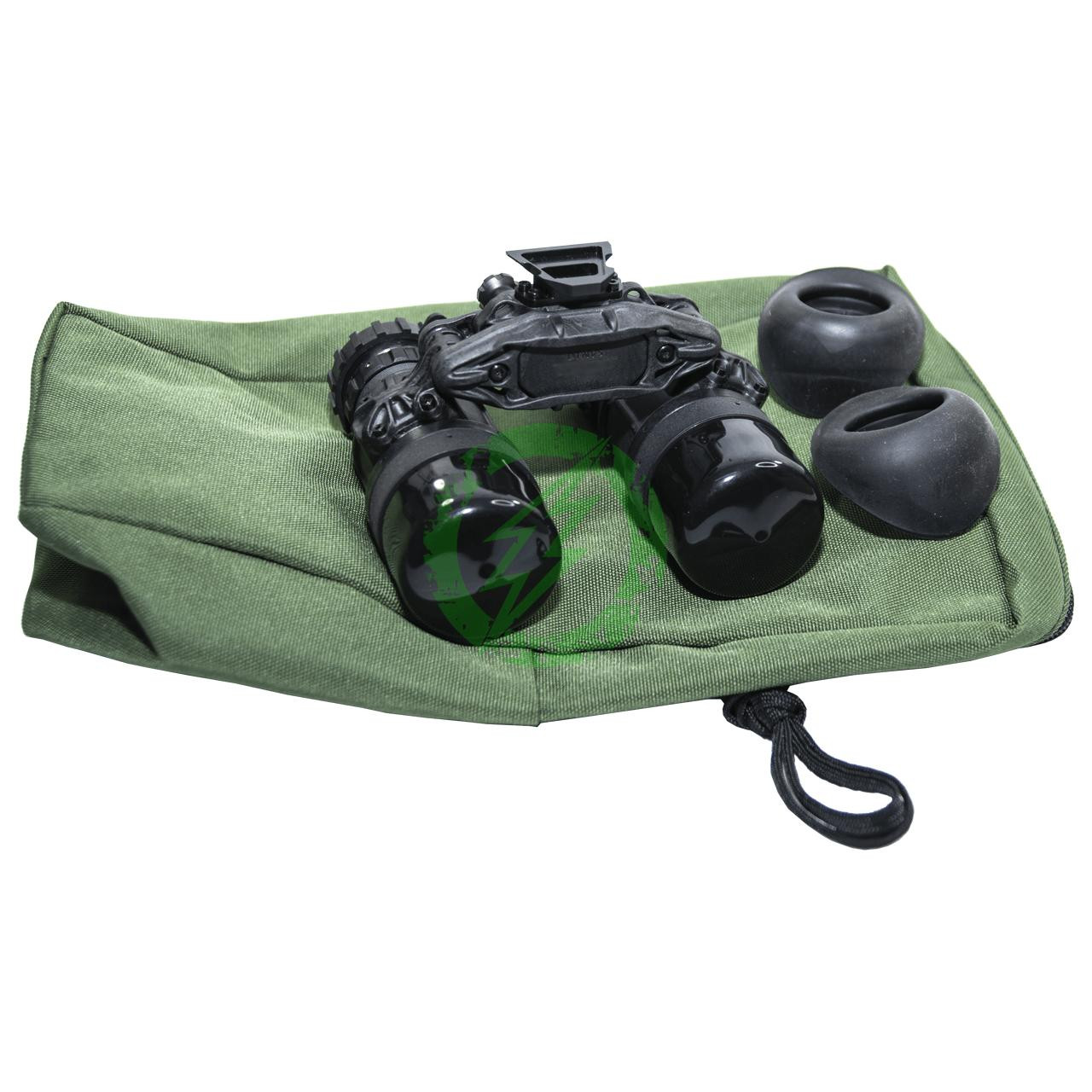

What's Included:
- ACT DTNVS with selected image intensifier tube
- Image Intensifier Tube Spec Sheet

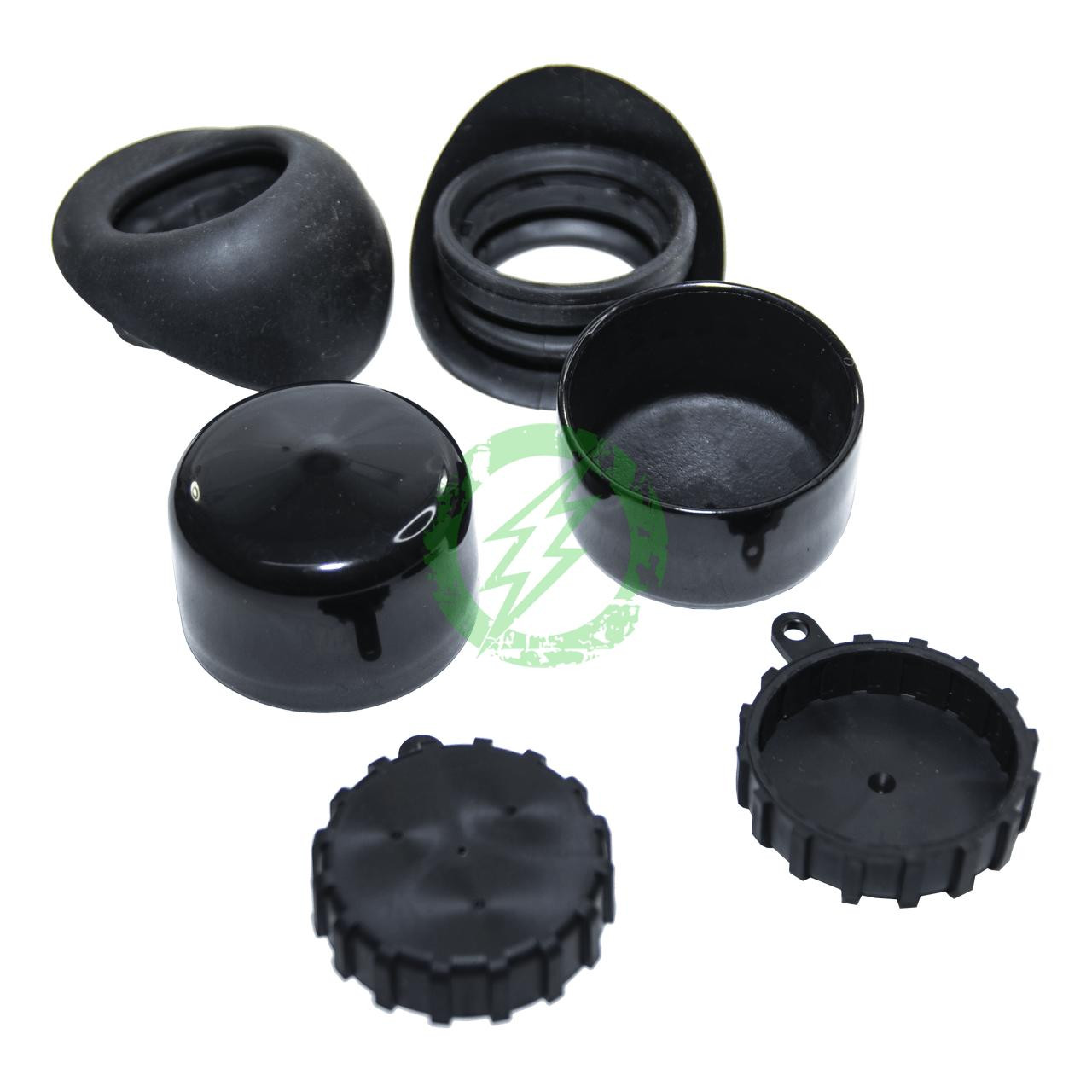

- Objective Cap (2)
- Eyepiece Cap (2)
- PVS-14 Eye Cup and Adapter (2)
- Green Soft Case
- CR123A Battery
- Performance Spec Sheet
