Product Description

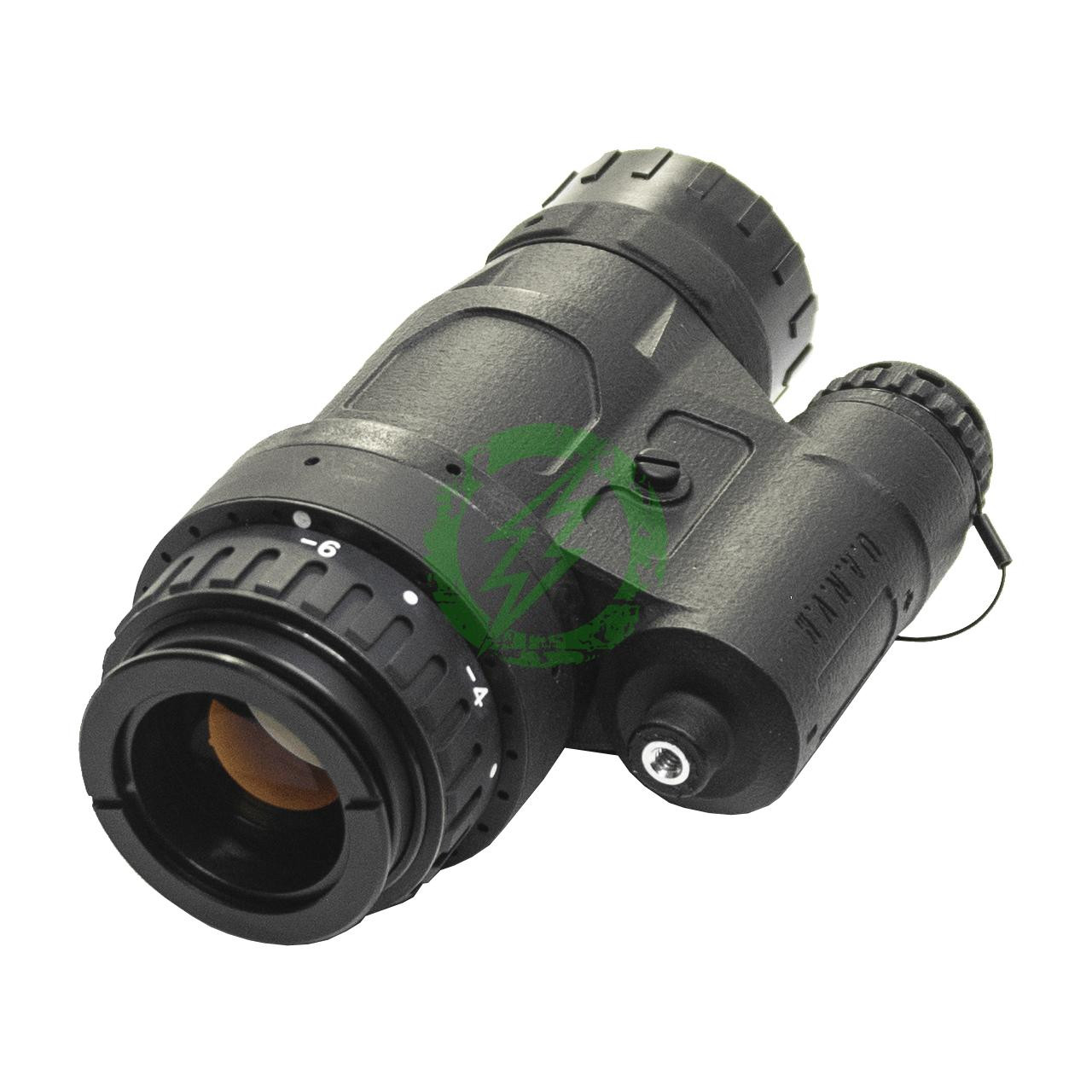

Nocturn Industries UANVM TANTO | White Phosphor Night Vision Monocular
The Nocturn Industries UANVM TANTO Monocular is an Ultralight Adaptable, high quality, Night Vision Monocular. This versatile night vision device can be field repaired in minutes without complex disassembly, and provides superior images under all lighting conditions.
Named after the traditional Japanese weapon, The UANVM Tanto is the cornerstone of our adaptable series of night vision devices. This unit mounts via a standard PVS-14 J-arm mount. A unique feature of this monocular is its ability to be adapted to a proprietary powered articulating dual bridge mount called the TAB (Tanto Articulating Bridge) “Daisho” with minimal tools or extra parts. The innovative design allows users to transform their monoculars into an articulating binocular in seconds or go from a binocular back to a monocular to share with a partner. To transform into the binocular, simply remove the battery cap and battery, insert the bridge into the battery compartment, and tighten the rear clamp screws on the bridge, done. The bridge enables the use of a single battery for both tubes, has built in IP stops similar to the UANVB “Katana”, and other features when released.
*The Tanto Articulating Bridge will be released at a later date.
It is simple with a minimalist lightweight design. Push button on/off in the cap to reduce weight and reduce the footprint of the monocular. When assembled to the TAB “Daisho” bridge extra features are enabled such as articulation to the side for single or dual eye use. The articulating design also enables users to operate vehicles without limiting head space by eliminating the need to stow the unit upright or to tuck the pods against the helmet when stowed.
This unit is light weight without compromising strength. It is rugged and has been drop from the NATO 1.5 meter drop test standard onto concrete, as well as meets and exceeds MIL-STD-810G.
Material: Polymer
Tube type: 18mm MX-10160 style or MX11769 style with EGAC pigtail removed.
Submersion and Dust Rating: IP68 equivalent
Weight:
8.76 OZ with standard optics and a battery
9.83 OZ with standard optics, battery, and Noisefighters X14 arm
7.76 OZ with RPO optics and a battery
8.83 OZ with RPO optics, battery, and Noisefighters X14 arm
Power: CR123 onboard
Runtime: 40+ hours
Mount style: PVS-14 J-arm style mount
Housing Specifications:
- Field of View (FOV): 40°
- Minimal Focus Distance: 1.9 in (25 cm)
- Diopter Adjustment: -2 to +2
ECHO Tube Specifications:
- FOM 1800+ Minimum
- SNR 26.5+
- Resolution: 64-72 lp/mm
- High Light Resolution (299 lux): 55 lp/mm
- Operational Time: 10,000 Hours
- Halo: .7-1.0
- EBI: <0.25
- ECHO Image Intensifier Tubes may have a maximum of 2 spots in Zone 1, 2, or 3.
Elbit Tube Specifications:
- FOM 1800+ Minimum
- SNR 25-45
- Resolution: 64-82 lp/mm
- Operational Time: 10,000 Hours
- Halo: .7-1.0
- EBI: <2.5 Maximum
- Image Intensifier Tubes may have a maximum of 2 spots in Zone 1, 2, or 3.
- YH Version of Elbit Tube is the highest performance Milspec Tube Available for Elbit and is typically much higher than the minimum numbers above.
L3 18UM Un-Filmed Tube Specifications:
- FOM 1800+ Minimum
- SNR 24:1 Minimum
- Resolution: 64-72 lp/mm Typical
- Operational Time: 10,000 Hours
- Halo: 1.0 Maximum
- EBI: <2.5 Maximum
- Image Intensifier Tubes may have a maximum of 3 spots in Zone 2, or 3. (Dark spots </= .003” are acceptable)
- L3 Filmless tubes perform much better in low light environments vs their thin filmed equivalents. Typically performance is higher than the minimum numbers above.
Warranty:
- Lifetime Limited Warranty on Housing against Manufacture Defects
- Ten Year Limited Warranty on Image Intensifier against Manufacture Defects
- These warranties do not apply to normal wear and tear or abuse.
What's Included:
- Nocturn Industries UANVM TANTO with selected image intensifier tube
- Image Intensifier Tube Spec Sheet
- CR123A Battery
- Pelican Hard Case for Added Protection and Storage
