Product Description

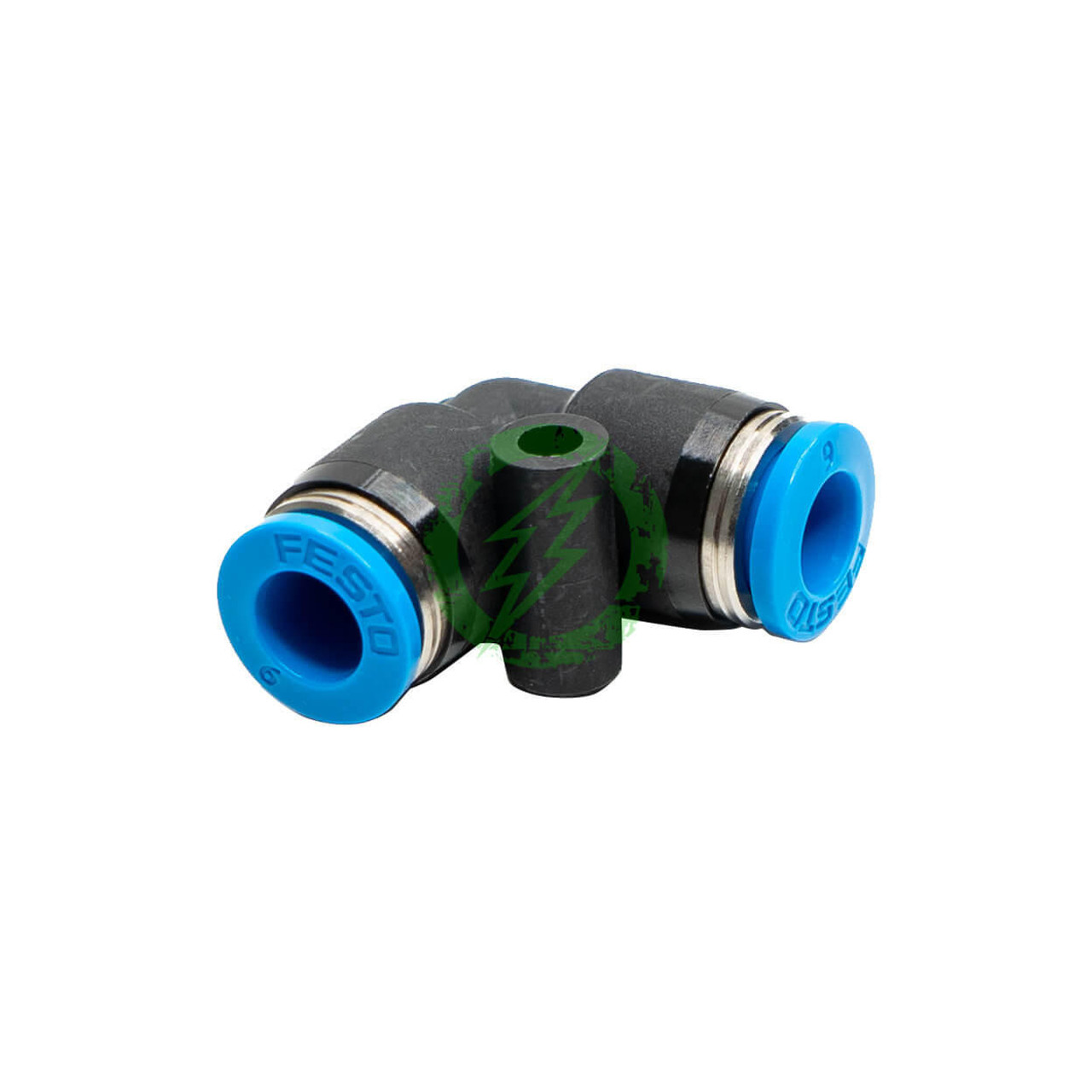

FESTO Push-in L-Connector QSL-6 Fitting for 6mm Macro Line
- Size: Standard
- Nominal width: 5 mm
- Mounting position: Any
- Design: L-shape
- Pack size: 10
- Structural design: Push-pull principle
- Operating pressure for entire temperature range: -0.095 MPa ... 0.6 MPa
- Operating pressure for entire temperature range: -0.95 bar ... 6 bar
- Operating pressure for entire temperature range: -13.775 psi ... 87 psi
- Temperature-dependent operating pressure: -0.095 MPa ... 1.4 MPa
- Temperature-dependent operating pressure: -0.95 bar ... 14 bar
- Temperature-dependent operating pressure: -13.775 psi ... 203 psi
- Maritime classification: See certificate
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
- Information on operating and pilot media: Operation with oil lubrication possible
- Corrosion resistance class (CRC): 1 - Low corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Ambient temperature: -10 °C ... 80 °C
- Product weight: 7.3 g
- Pneumatic connection 1: For pneumatic tubing outside diameter 6 mm
- Pneumatic connection 2: for pneumatic tubing outside diameter 6 mm
- Releasing ring color: Blue
- Note on materials: RoHS-compliant
- Housing material: PBT
- Releasing ring material: POM
- Material of tubing seal: NBR
- Material of tube retaining claw: High-alloy stainless steel
