Product Description

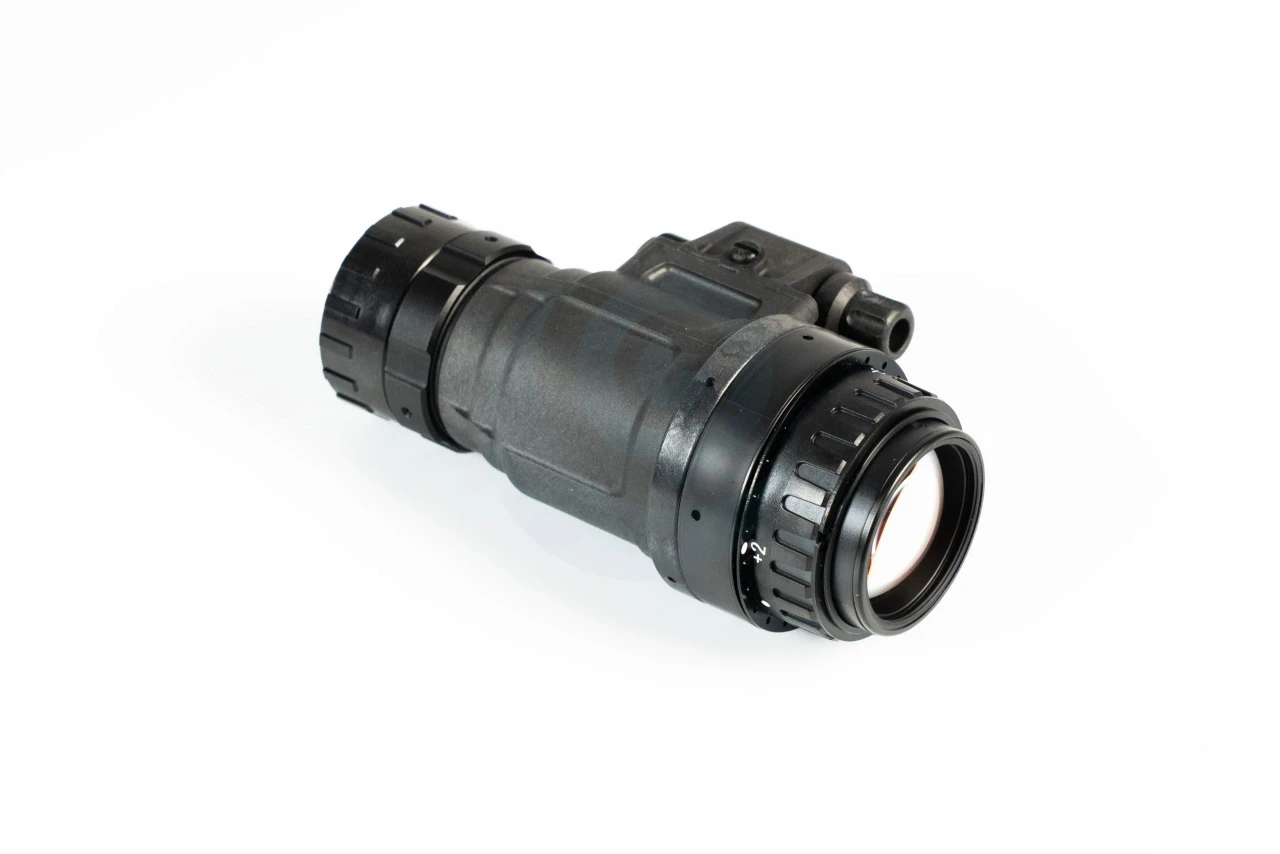

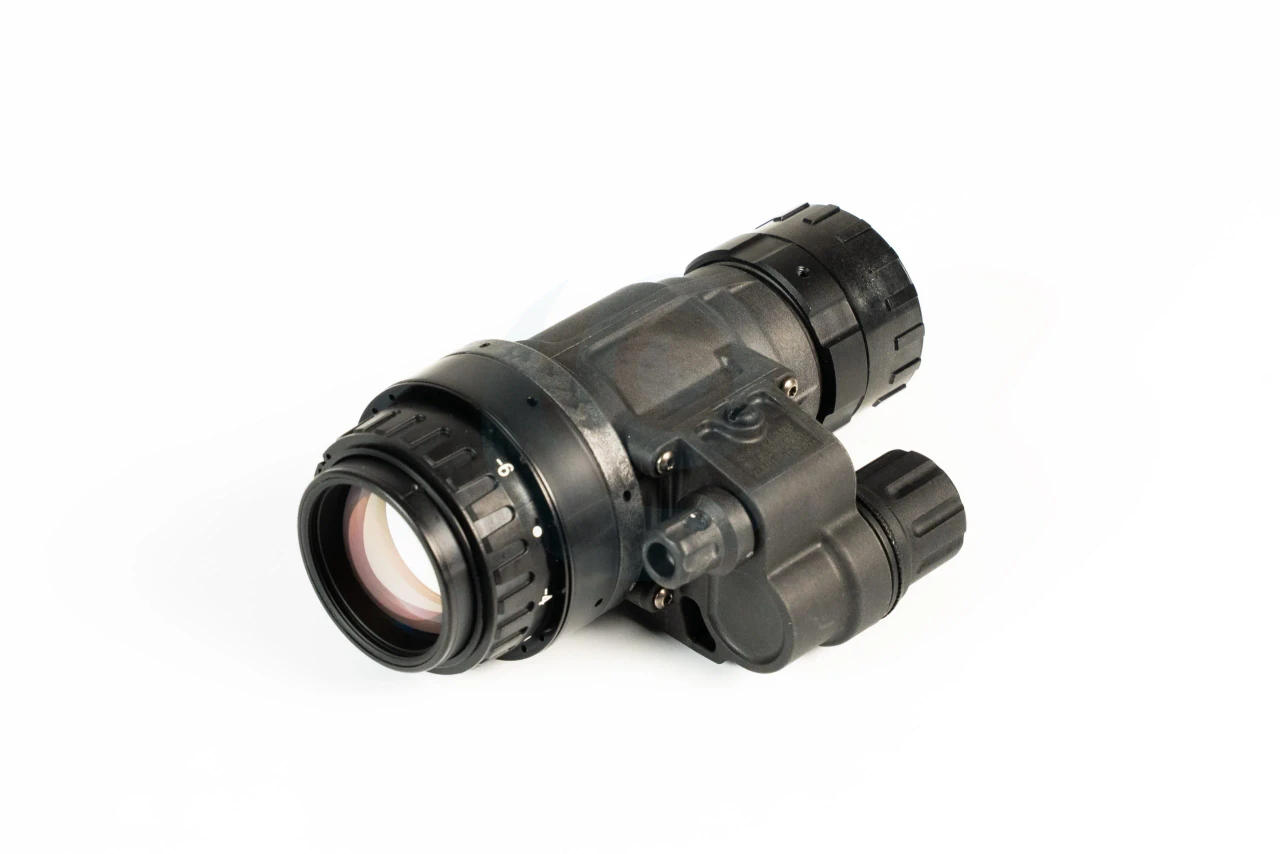

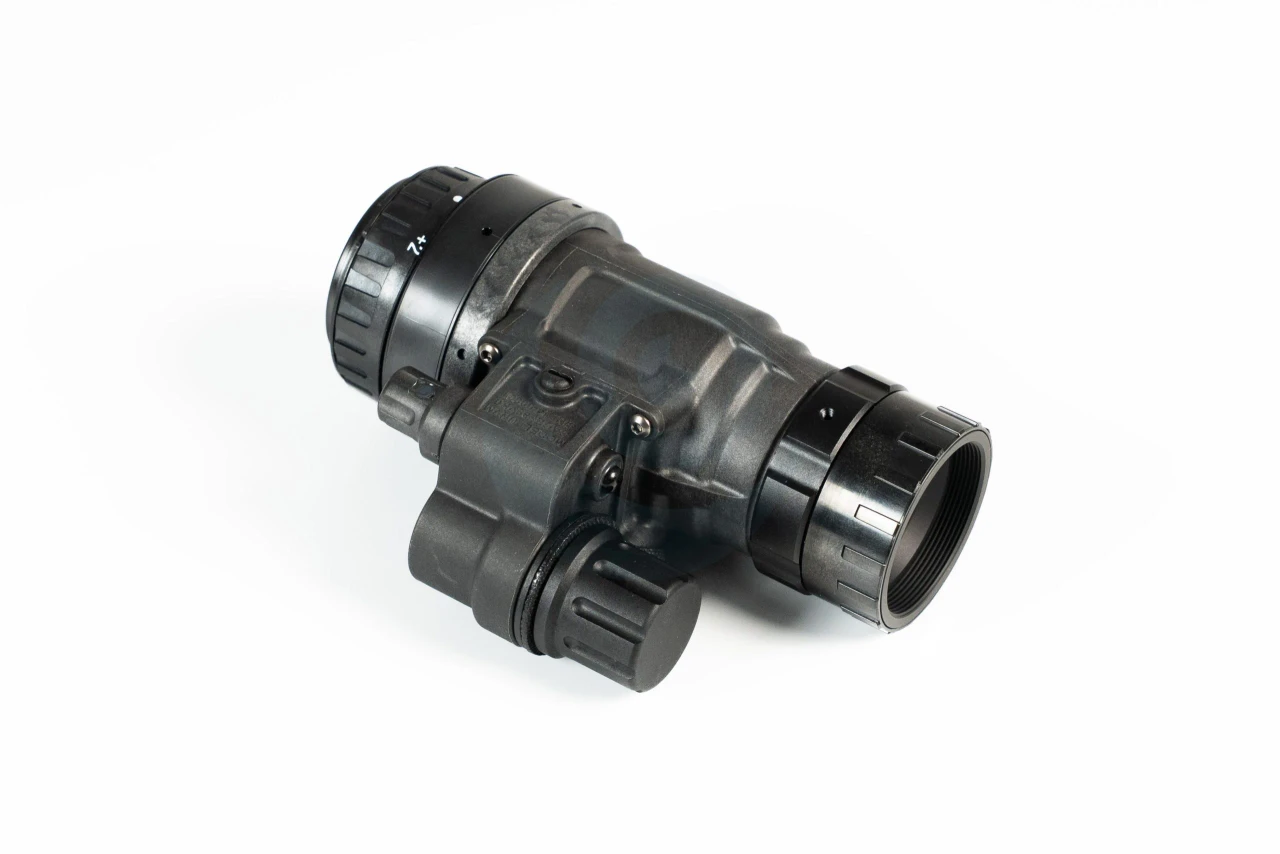

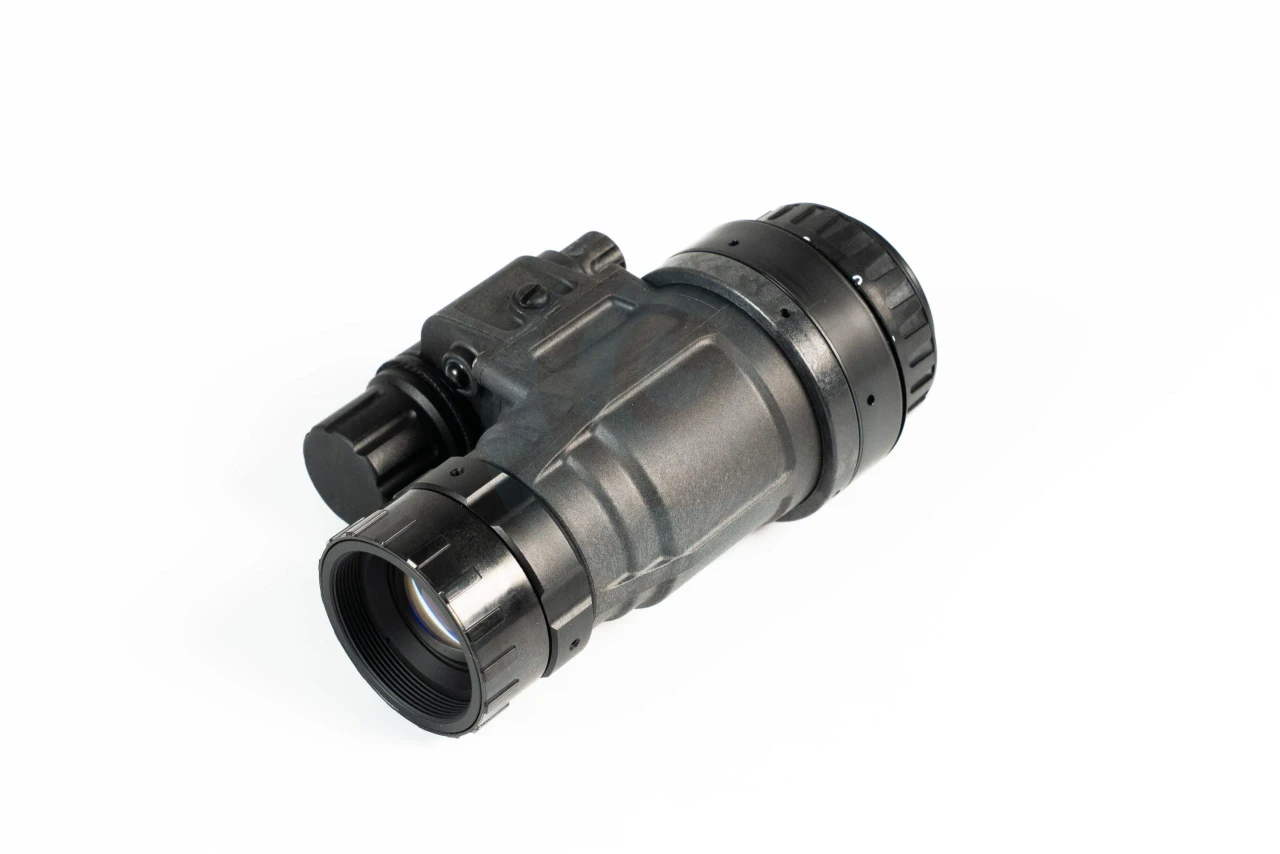

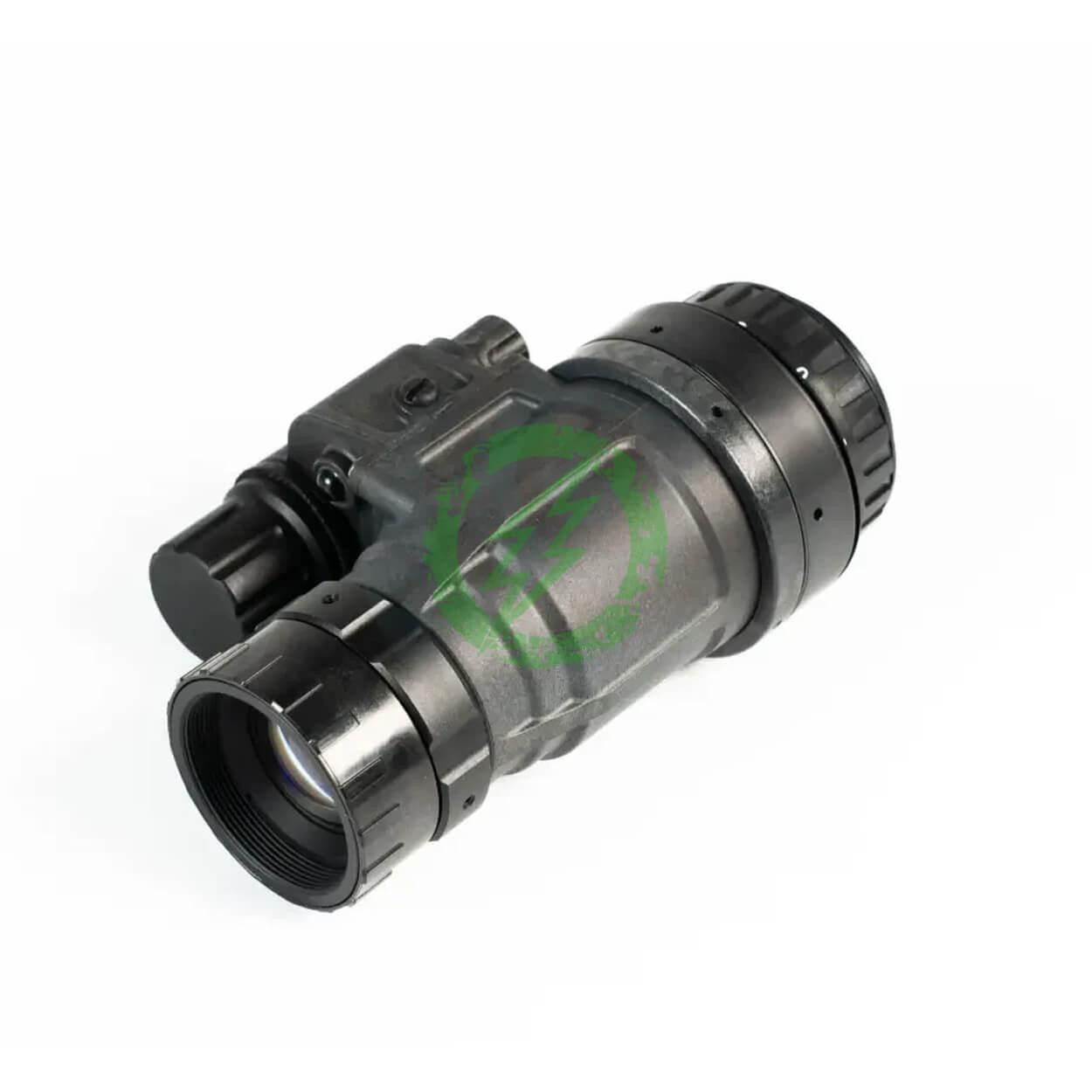

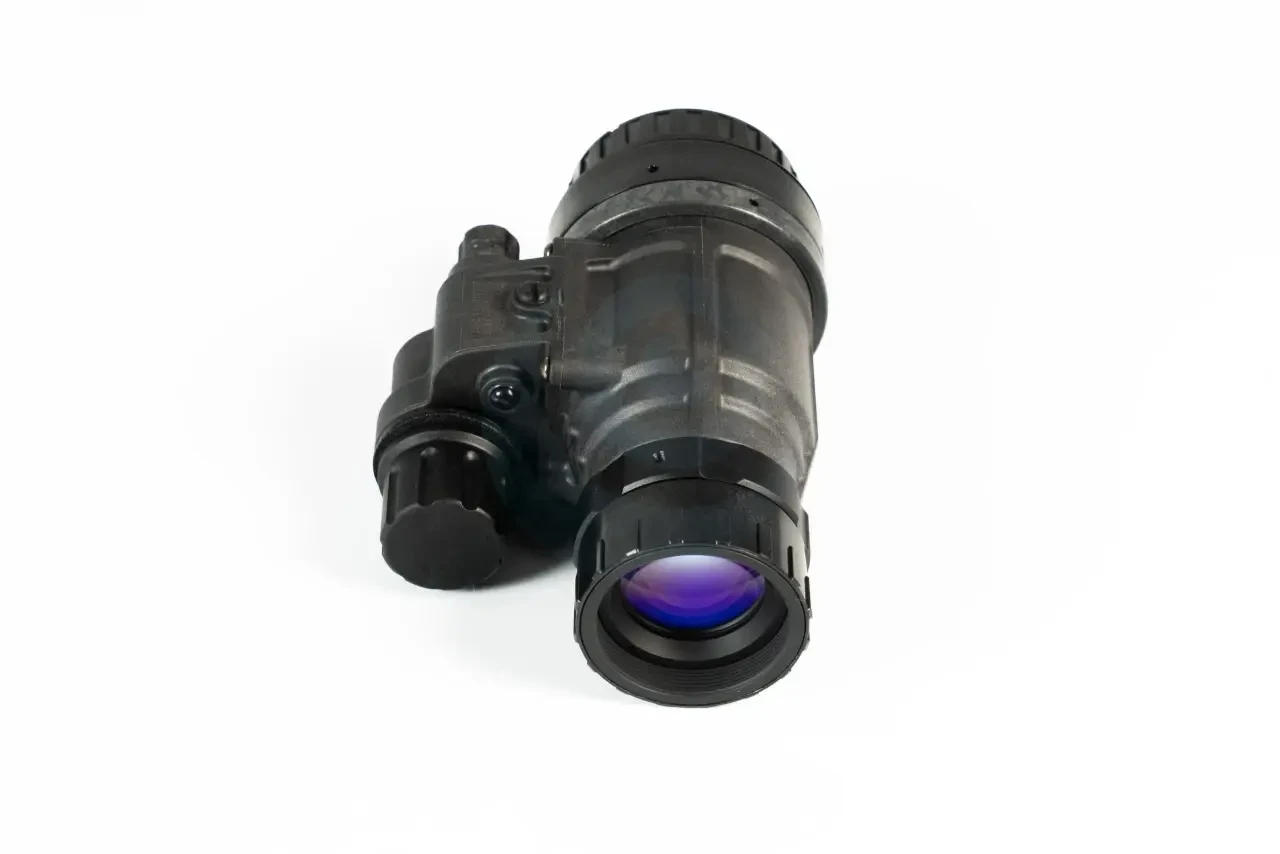

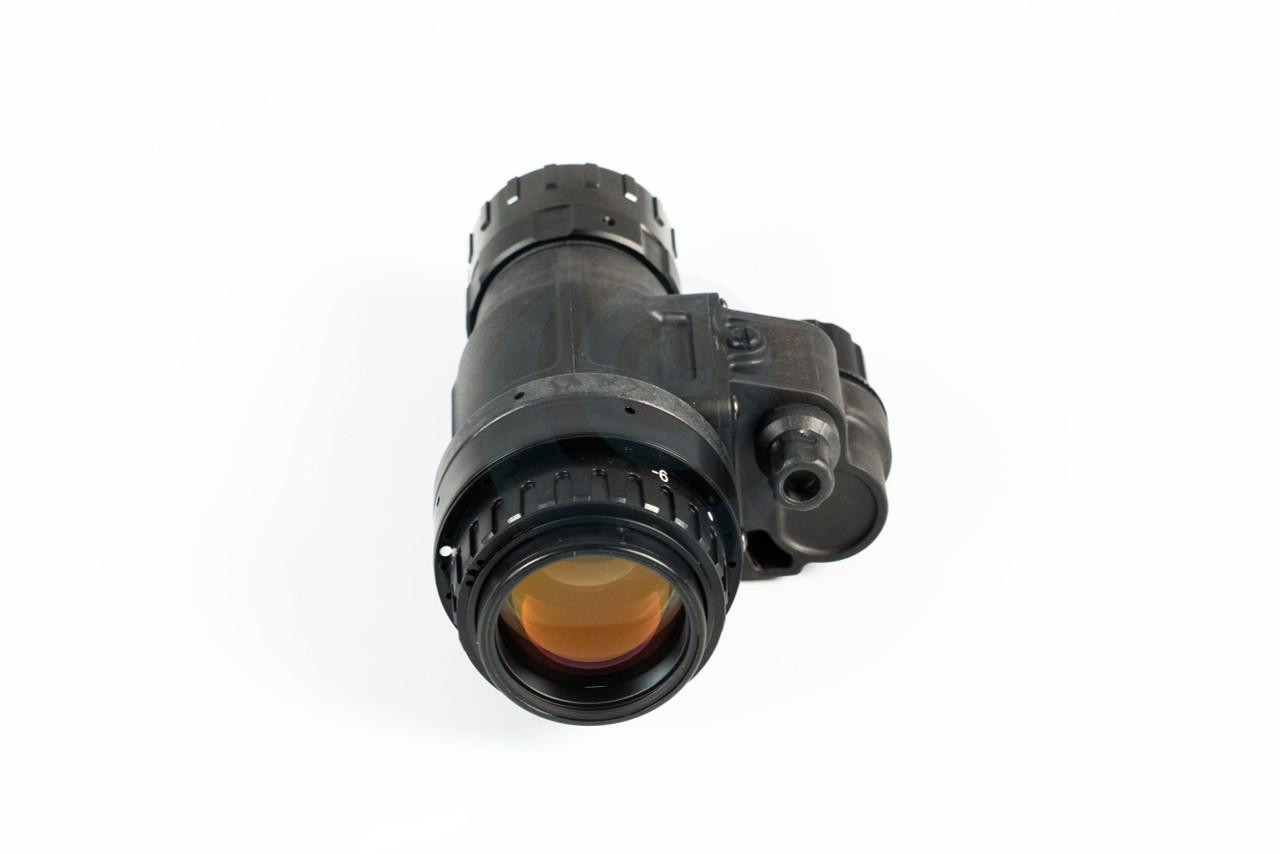

Nocturn Industries UANVM TALON | White Phosphor Night Vision Monocular
The Nocturn Industries Ultralight Night Vision Monocular (U.N.V.M.), known as the “Talon,” is an ultralight, full-featured monocular engineered with a cutting-edge carbon fiber-reinforced thermoplastic composite to reduce weight and size while significantly improving durability compared to the widely fielded PVS-14, without sacrificing the feature set or optics compatibility. The housing weighs only 53 grams in a CR123A configuration, approximately 50% lighter than a standard AA PVS-14 housing (115g).
The Talon is designed for ergonomic use, featuring a single tactile control knob for all device functions. Pressing and holding the knob powers the device on or off, while detented rotation allows gain adjustment. Double-tapping the knob activates the onboard IR illuminator, accompanied by an in-view indicator, which can be tapped once to deactivate. When the IR illuminator is active, rotating the knob adjusts its brightness to the user’s preference. Using the same knob, users can enable or disable auto-off when stowed. A low-battery indicator alerts the user when a battery replacement is required.
The Talon supports standard EGAC MX-11769 image intensifier tubes as well as 3-pad MX-11769 European-style tubes without modification and accepts standard PVS-14 mounting J-arms and accessories. The monocular ships with a CR123A battery cap as standard, with AA and CR2 caps available for seamless swapping using the existing battery cap lanyard. The image tube pod is fully interchangeable with the Talon and Raptor binocular product lines.
The U.N.V.M. Talon is designed, machined, molded, and assembled in the United States.
Material: Polymer
Tube type: standard EGAC MX-11769 image intensifier tubes as well as 3-pad MX-11769 European-style tubes
Ratings:
Weight:
Power: CR123 onboard (Optional AA and CR2 Battery Caps are available)
Runtime:
Mount style: PVS-14 J-arm style mount
Housing Specifications:
- Field of View (FOV): 40°
- Minimal Focus Distance: 1.9 in (25 cm)
- Diopter Adjustment: -2 to +2
High strength hybrid fiber reinforced injection molded polymer
- PVS-14 J-arm style mount compatible
- Lightweight and robust design
- Comes standard with CR123 cap
- Optional AA and CR2 battery caps
- A single knob controls power, IR and Gain
- 50 hours of battery life (CR123A or AA)
- IR illuminator is adjustable
- Designed to meet and exceed IP68+ and MIL-STD-810H standards
- Lifetime repair or replacement warranty
| Specifications | |
|---|---|
|
Housing Material
|
|
|
Coating
|
|
|
Housing Weight
|
|
|
Device Weight Standard
|
|
|
Device Weight Lightweight
|
|
|
Onboard Power
|
|
|
Outboard Power
|
|
|
Manual Gain
|
|
|
IR Illuminator
|
|
|
Individual pod on/off
|
|
|
Tube Type
|
|
|
Low Battery Indicator
|
|
|
Ingress and Durability
|
|
NNVT Autogated Tube White Phosphor:
- NNVT intensifier tubes are Chinese made alternatives that are cost effective and a good way to get into the night vision on a budget with alright performance. Not as high performing as their US Made counterparts. Suitable for most users starting out and who are on a budget.
Elbit GEN 3 Autogated Tube White Phosphor:
- Elbit GEN 3 Autogated intensifier tubes are high performing and offer enhanced clarity and contrast. These tubes are autogated for light adaptability, have rugged durability and energy efficiency. These are what most users who are looking for high quality night vision choose.
L3 Filmless Tube White Phosphor:
- L3 Filmless intensifier tubes are very high end and considered some of the best tubes on the market. These tubes offer unparalleled performance in lower light situations compared to your typical Elbit or other thin filmed GEN 3 tube. Due to the manufacturing process of filmless technology, they often have a slight "peppering" to them, however, their performance more than makes up for any impurities from the manufacturing process. Want the best performance on a moonless night or in very dark areas, then the L3 tubes are the way to go! These have a luminance gain of 40,000 - 80,000 fL/fc)
L3 SUPERGAIN Un-Filmed Tube Specifications:
- L3 Filmless SUPERGAIN intensifier tubes have a much higher luminance gain than standard L3 tubes above. These have a luminance gain of 100,000 - 120,000 fL/fc) allowing for use in some of the darkest of areas allowing your to perform almost anywhere.
Warranty:
- Five Year Limited Warranty on NVG Unit against Manufacture Defects (Two Years if selecting NNVT Tubes)
- These warranties do not apply to normal wear and tear or abuse.
- 45 Day Exchange/Return policy as long as equipment is sent back in new condition.
Kit Includes:
- Nocturn Industries UANVM TANTO with selected image intensifier tube
- Image Intensifier Tube Spec Sheet
- Pelican-style hard case
- Basic Lens Covers
- Intensifier Tube Spec Sheet
All of our night vision is built by a professional supplier who utilizes all proper tooling and testing devices. Orders will require a build time of 3-5 business days and will be shipped to you once completed. We will require that all necessary ITAR paperwork is completed before shipping. These will be sent over via Docusign shortly after your order is placed.
